ALDEX C-800 Series Resins

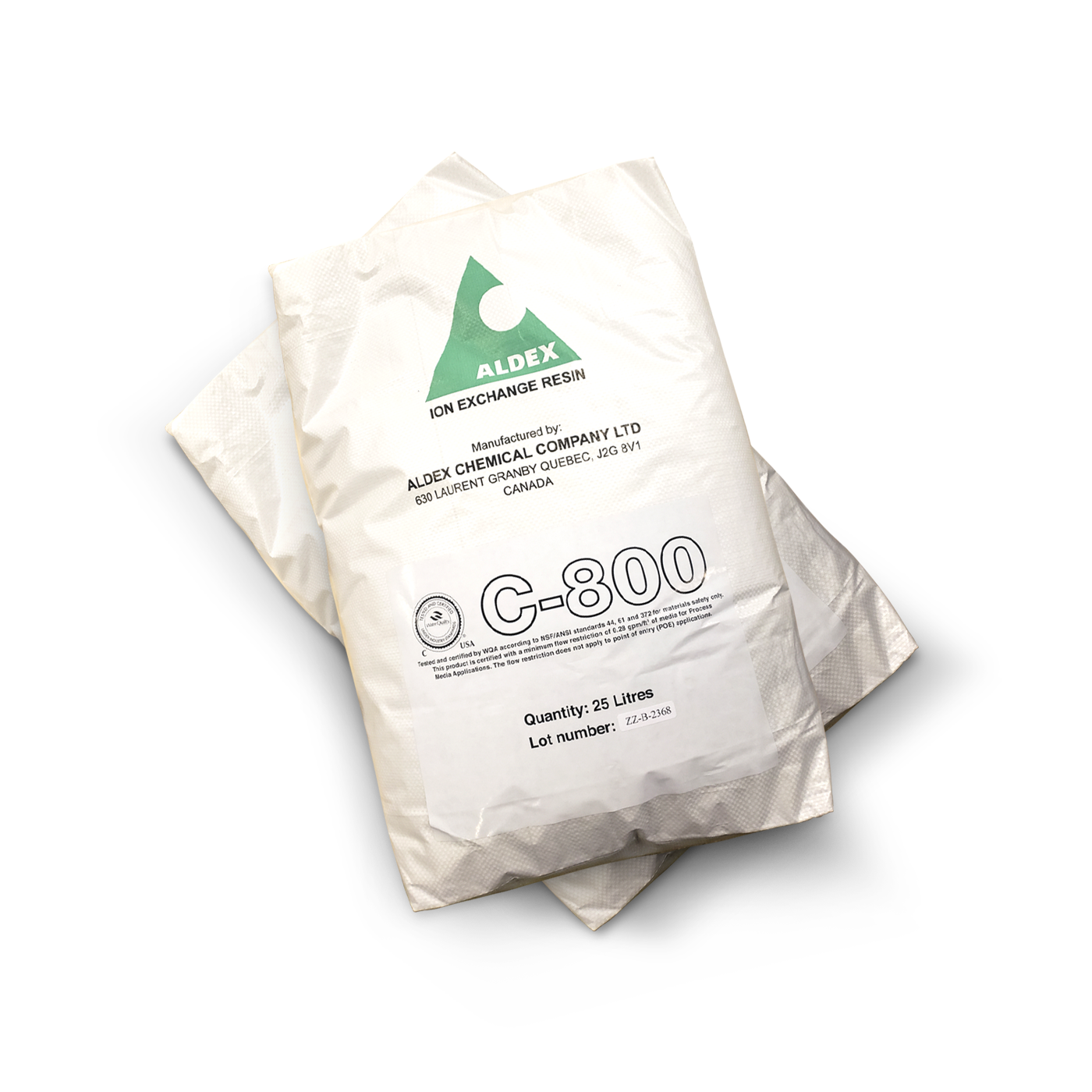

NSF/ANSI 44, 61, and 372 Certified. Aldex C-800 is a high capacity, high quality, gel-type cation resin capable of meeting the most exacting requirements of household, farm, commercial, institutional, and industrial water softeners. It is supplied in the sodium form as black colored beads in 1 cubic foot bags and larger bulk packages.
Description
C-800 Features
No Chlorinated Solvents
The absence of chlorinated solvents in the manufacturing of Aldex C-800 results in very low TOC leakage.
Very low color, taste, or odor
Aldex C-800 meets the requirements for paragraph 173.25 of the Food Additive Regulation of the U.S. Food and Drug Administration.
High Capacity
30,000 grains of softening capacity when regenerated with 15 lbs of NaCl per cu. ft. and 20,000 grains with 6 lbs of NaCl per cu. ft. Ensuring high efficiency and low operating costs.
Long Life
Strong and durable beads ensure long service life.
Reliability
Over 34 years of actual field usage by thousands of customers demonstrate the reliability of Aldex C-800.
Safety Information
A material safety data sheet is available for Aldex C-800. Copies can be obtained from Aldex Chemical Co., LTD. Aldex C-800 is not a hazardous product and is not WHMIS controlled.
Caution: Acidic and basic regenerant solutions are corrosive and should be handled in a manner that will prevent eye and skin contact. Before using strong oxidizing agents in contact with ion exchange resin, consult sources knowledgeable in the handling of these materials.
C-800 Operating Suggestions
Iron
Aldex C-800 will remove most of the dissolved iron, can filter much of the suspended iron and may or may not remove organically bound iron from water. When softeners are used to remove iron from the water, periodic cleaning of the bed mechanically or with a chemical iron cleaner may be necessary.
Chlorine
All cation exchange resins are affected by chlorine and suffer degradation and swelling. It is recommended that the chlorine in the water be maintained below 1.0 ppm when using Aldex C-800.
Fig. 1 Exchange capacity vs. regeneration level Sodium form C-800 Cation Resin
Backwash Characteristics
Aldex C-800 should be backwashed for at least 10 minutes after each service cycle in a conventionally down flow regenerated softener. To reclassify the beads and remove suspended solids from the top of the bed, the resin bed should be expanded at least 50% according to Fig. 2.
Fig. 2 Bed expansion vs. backwash flow rate for various water temperatures
In the case of non-conventional or upflow regenerated softeners, it may not be necessary to follow the above procedure since the backwash and brine injection are incorporated in the same step.
Pressure Drop
Figure 3 shows the expected pressure loss per foot of bed depth as a function of flow rate at various temperatures.
Fig. 3 Pressure Drop vs. Flow Rate
Additional information
| Weight | 25 kg |
|---|
